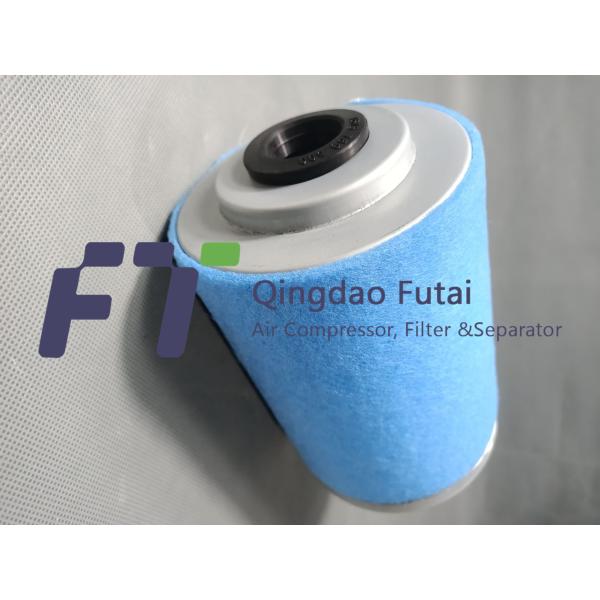

1615769500 Compressor Air Oil Separator ATLAS COPCO Replacement

ATLAS COPCO Replacement 1615769500 Compressor Air Oil Separator

There is a safety valve above the end cover of the oil tank. When the air pressure in the oil tank reaches 1.1 times of the set value, the safety valve opens automatically, letting off part of the air and reducing the air pressure in the oil tank.

The method to check the safety valve is to gently pull the deflated pull ring on the safety valve when the compressor is fully loaded. If the safety valve can exhaust outward, it is regarded as normal.

A pressure gauge is installed on the oil distributor to measure the pre-filter pressure. The bottom of the tank is equipped with a blowdown valve, which should be opened regularly to let off the water and dirt settling in the bottom of the tank.

There is a transparent oil level mirror next to the tank to show the level of oil in the tank. The correct oil level is in the middle position of the upper and lower degree when the air compressor works normally. If it is too high, it will run away, and if it is too low, it will affect the safety of the whole machine.

Oil sub tank belongs to pressure vessel and must be produced by professional manufacturer with manufacturing qualification.

Features

1. Low pressure drop and energy saving

2. High quality filtration media
3. Low oil consumption
4. Reliable and stable
5. Compact design
6. Long life span

AIR OIL SEPARATOR — SEPARATES THE OIL FROM THE COMPRESSED AIR

1615769500 Compressor Air Oil Separator

ATLAS COPCO Compressor Air Oil Separator

1615769500
